Grinding Beads
Your Professional Grinding Beads Supplier
QINGDAO SHENGAN FINE CERAMIC ADVANCED MATERIALS CO., LTD. is an enterprise dedicated to the research, development, production and sales of zirconium and titanium related materials.
The company has four advanced zirconium and titanium production lines, covering the importing and processing of zirconium raw materials, chemical zirconium production such as zirconium oxychloride, zirconium carbonate, zirconium sulfate, etc.
-
![0.03mm Micro Beads, Formed By Dripping Method]()
0.03mm Micro Beads, Formed By Dripping Method0.03mm Micro beads formed by dripping method are the high-end grinding product, because of the forming method and raw material, they have more advantages.They are popular in the new energy industries.read more -
![0.05mm Micro Beads, Formed By Dripping Method]()
0.05mm Micro Beads, Formed By Dripping MethodThese 0.05mm micron beads are engineered for advanced nano-grinding applications. Manufactured with high-purity powder through dripping, they offer excellent sphericity and a narrow size...read more -
![0.1mm Micro Beads, Formed By Dripping Method]()
0.1mm Micro Beads, Formed By Dripping MethodEspecially designed for the high-end industries, such as new energy battery, nano fiber, electronic paste, ceramic ink, etc.. They are suitable for sand mills or basket mills.read more -
![95 Zirconia Beads]()
95 Zirconia Beads95 zirconia beads are made from yttria-stabilized zirconia powder, formed by rolling or dripping. Because of the high hardness and low wear, they are the best grinding media for ultra-fine...read more -
![85 Zirconia Beads]()
85 Zirconia Beads85 zirconia beads have slightly lower density (about 5.0 g/cm3), taking into account both grinding efficiency and equipment compatibility.read more -

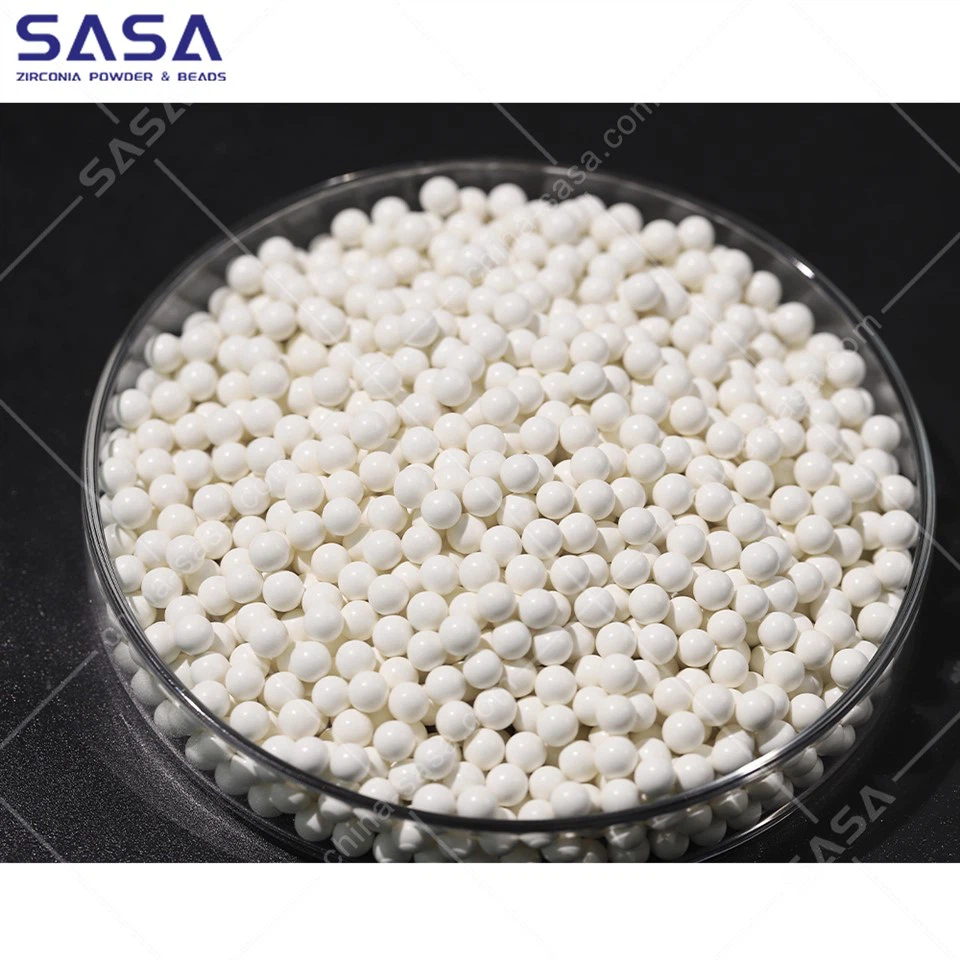

![65 Zirconium Silicate Beads]()
65 Zirconium Silicate Beads65 zirconium silicate beads also called Zirconia Silicate Ceramic Beads is a type of excellent and attractive grinding media, due to the lower density, it allow the mills start at a low current...read more -
![80 Zirconia Beads]()
80 Zirconia BeadsDensity 4.5 g/cm³, abrasion <0.01‰, strong impact resistance.80 zirconia beads suitable for magnetic materials, specialty chemicals, ceramic raw materials, mineral powders.read more -
![Zirconia Beads for Sand Mills]()
Zirconia Beads for Sand MillsUsed in the sand mills or ball mills, it’s the best grinding media for the ultra-fine grinding process in various industries.read more -
![95 Zirconia Beads Formed By Dripping]()
95 Zirconia Beads Formed By Dripping95 zirconia beads formed by dripping method are the high-end grinding product, because of the forming method and raw material, they have more advantages.They are popular in the new energy industries.read more -
![Zirconia Ceramic Beads]()
Zirconia Ceramic BeadsZirconia Ceramic Beads can be used as grinding media for grinding and dispersing of various materials. For its high hardness and high wear resistance, it is the best grinding media for many...read more -

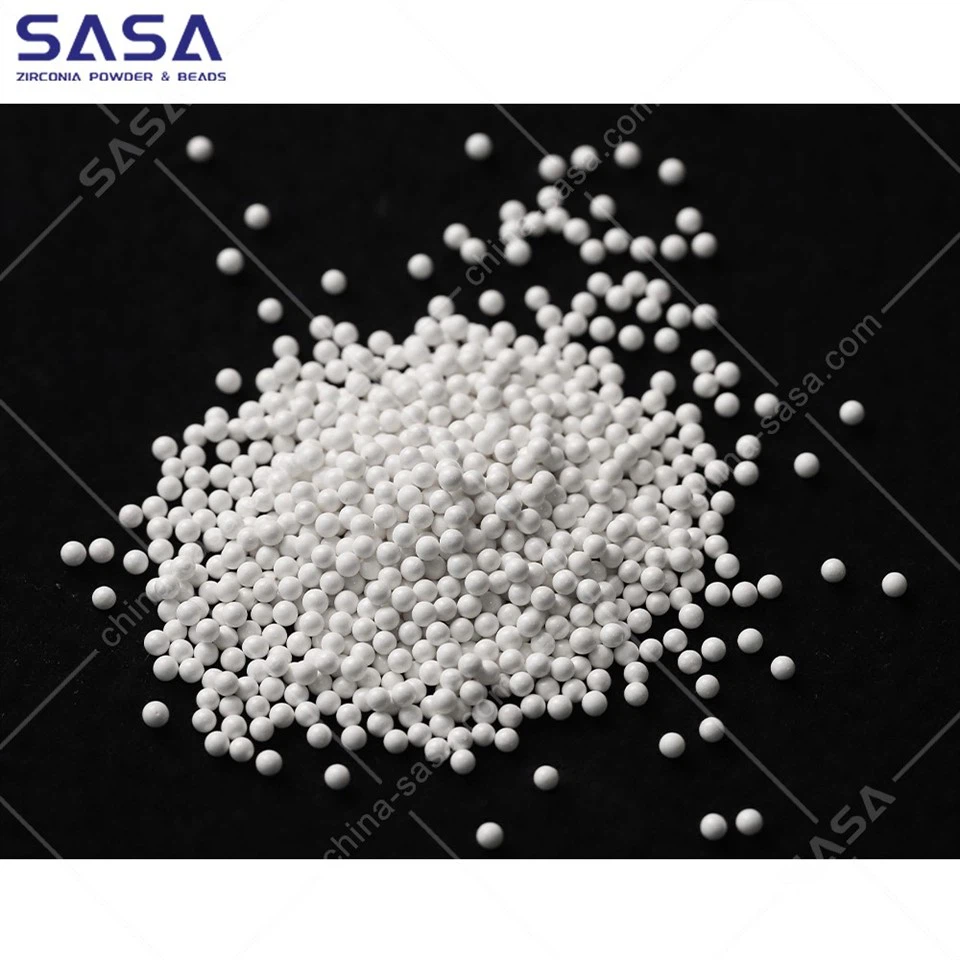

![Zirconia Grinding Media]()
Zirconia Grinding MediaZirconia grinding media includes zirconia beads, ZTA beads, they are all used for grinding and dispersing for different industries.read more -

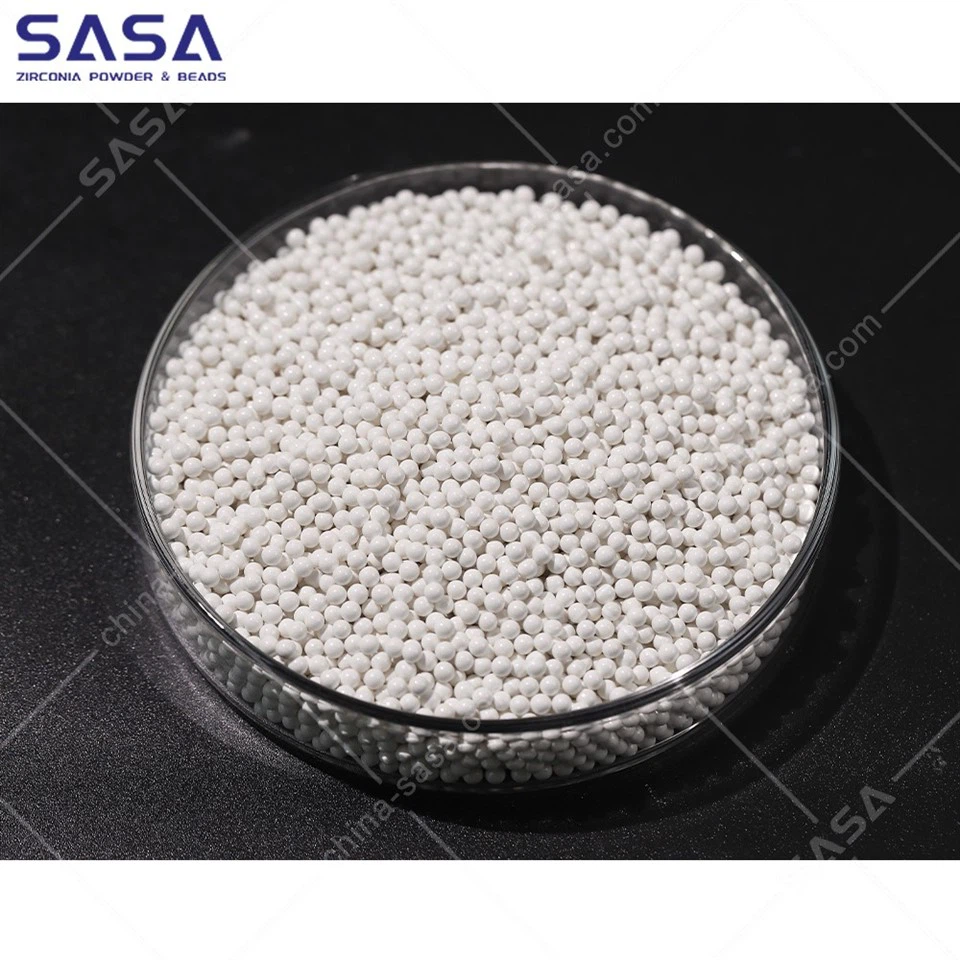

![Zirconia Toughened Alumina Beads Of 4.0 True Density]()
Zirconia Toughened Alumina Beads Of 4.0 True DensityThe ZTA beads produced by our company have high wear resistance. Its wear is only one-fourth that of ordinary ceramic balls and about one-tenth that of steel balls.read more
Why Choose us
Advanced Technology
We have mastered advanced hydrothermal powder preparation technology and are proficient in the titration, rolling, and dry pressing processes for the preparation of zirconium beads.
Complete Product Qualifications
Our company has obtained certifications from reputable institutions, including ISO9001, ISO14001, RoHS, REACH, and MSDS, among others.
24-hour Online Service
We offer round-the-clock online service, ensuring an eight-hour rapid response time and providing a detailed processing plan within 24 hours. Our team is committed to addressing your inquiries with sincerity, efficiency, and professionalism.
Parameter
|
True density |
≥6.05g/cm3 |
|
Bulk density |
≥3.6g/cm3 |
|
Vickers hardness (HV) |
＞1250 |
|
Sphericity |
99% |
|
Self-consumption |
＜0.01% |
|
Chemical composition |
ZrO2≥94.5%, Y2O3: 5%±0.3% |
|
Size range |
0.3-35mm |
Customization Process
Communication Needs
Grinding beads are available in a range of sizes and shapes, which can be customized to suit specific grinding applications. Please provide your customization concepts along with detailed specifications for further discussion and evaluation.
Production Execution
Following the confirmed design, we implement meticulous production processes with strict quality control at every stage, ensuring consistency and precision before proceeding to mass production.
Quality Inspection and Packaging
Upon completion of the product, a comprehensive three-stage inspection process is conducted to ensure quality standards are met. Subsequently, the products are packaged in accordance with your specified requirements.
Delivery Assurance
We ensure timely delivery of the products within the agreed timeframe as per the contract terms.
Features of Grinding Beads
Density
There are two indicators, true density, and bulk density, which are determined by the molecular weight and ratio of various chemical components. Theoretically, the larger the density of the grinding beads, the greater the impulse and the higher the grinding efficiency though the wear to the bead mill components such as the grinding cylinder and separation disc is relatively larger. Thus, the slurry viscosity and flow rate become the key. Normally, low-density grinding beads are suitable for slurry in low viscosity while high-density grinding beads are for high viscosity.
Hardness
Mohs scale or Vickers scale are commonly used to indicate the hardness of the grinding beads. Generally, the higher the hardness of the grinding beads, the lower the wear rate of the beads. Although the beads of high hardness may cause the contacting components to wear, the beads' flling amount, slurry viscosity, etc. can be adjusted to find the best combination.
Diameter
The diameter of the grinding. beads determines the contact area with the grinding slurry. The contact area between beads in smaller sizes and the particles in the slurry is larger thereby increasing the grinding efficiency. However, the smaller beads may have insufficient impulse if the grinding particles are large. For example, grind the slurry with particles or aggregations 100μm with φ1mm beads. In such cases, using the larger beads is quite necessary.
Application of Grinding Beads
Mining Industry
• Grinding Ore: In mining operations, grinding beads are used in ball mills to grind large chunks of ore into finer particles, making it easier for further smelting, beneficiation, and metal extraction.
• Common Applications: Grinding of gold ore, copper ore, iron ore, bauxite, and other ores.
Cement Industry
• Grinding Clinker: In cement production, grinding beads are used to grind cement clinker and other raw materials, turning them into fine powder to produce cement.
• Improving Cement Quality: By precisely controlling the particle size, grinding beads help improve the performance of the cement (e.g., strength, workability, etc.).
Chemical Industry
• Grinding Pigments and Paints: Grinding beads are used to grind pigments, coatings, and chemicals to achieve the required particle size, which enhances product uniformity and quality.
• Grinding Catalysts: In chemical reactions, grinding beads are used to grind catalysts, facilitating efficient reactions.
Pharmaceutical Industry
• Grinding Pharmaceuticals: In the pharmaceutical industry, grinding beads are used to grind drug ingredients into fine powders to improve solubility and absorption efficiency.
• Processing Herbal Medicine: In traditional medicine production, grinding beads are used to grind herbal materials to the desired particle size for formulations and extraction.
Food Industry
• Grinding Grains and Spices: High Chrome Grinding Media are used to grind grains (such as wheat, rice) and spices, ensuring the right fineness and uniformity.
• Chocolate and Candy Production: In the production of chocolate, candies, and similar products, grinding beads are used to improve the fineness of the slurry, resulting in smoother textures.
Environmental Industry
• Wastewater Treatment: In some wastewater treatment processes, grinding beads are used for material fine-tuning and purification, promoting the decomposition or adsorption of pollutants.
Electronics Materials Industry
• Ceramics and Powder Preparation: Cast grinding beads are used in the production of electronic materials, such as ceramics and electronic slurries, for fine grinding and particle size control to ensure material quality and performance.
Metalworking Industry
• Alloy and Powder Metallurgy: Grinding beads are used in metal powder grinding, helping produce alloy powders or other fine metal materials for further processing.
Additional Information
|
Terms Of Payment |
We usually accept T/T, L/C, Paypal, Credit card, etc. If you prefer other payments terms, please feel free to discuss with us. |
|
Shipping |
We offer various shipping methods, including sea freight and express delivery, depending on the order size and destination. |
|
Packing |
Plastic inner bags within plastic barrels, unit package 25kgs/barrel. |
Certificate
FAQ
We're professional grinding beads manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to buy high-grade grinding beads from our factory.
